PRODUCT OVERVIEW

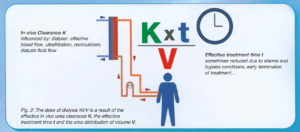

The next generation refurbished fresenius 4008S optimizes dialysis outcomes through the use of its revolutionary Online Clearance Monitor (OCM®). Numerous studies have demonstrated that morbidity and mortality rates are closely correlated to the delivered dialysis dose1,2 (Kt/).

The OCM® enables continuous monitoring of the:
– Real-time values for the effective in-vivo urea clearance (K)
– Effective dialysis treatment time
– Accumulated cleared plasma (Kt)

STANDARD
* Plasma sodium concentration
– Current dialysis dose administered (Kt/V)

– Non-Invasive and completely automatic
– Requires no additional disposable, abora a Modatef effort
– An effective quality assurance toolto monitorithe delivery of dialysis dose
– No extra costs per treatment

An accurate assessment of the urea distribution volume (V) with the body.
Composition Monitor (BCM) assures a precise target for dialysis dose prescription.
Validated in renal patients, the BCM provides a convenient assessment to help deliver adequate dialysis.
The BCM is available separately.



EASE OF OPERATION – Refurbished Fresenius 4008S NG



The next-generation 4008S dialysis machine is designed for ease of use while providing
the highest standards of patient safety and treatment hygiene.

– Central allocation of all functions for easy handling of treatment parameters.
– The traffic light clearly indicates the treatment status
– Built-in tray for user convenience

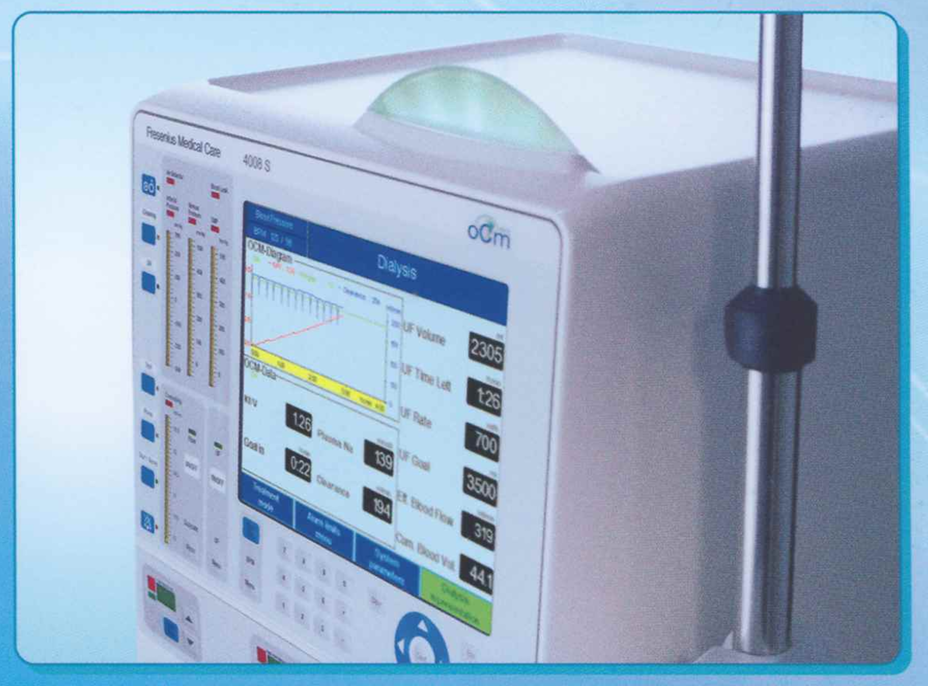

– Multi-colour graphical display viewable from any angle
– Easy cleaning of all surfaces.

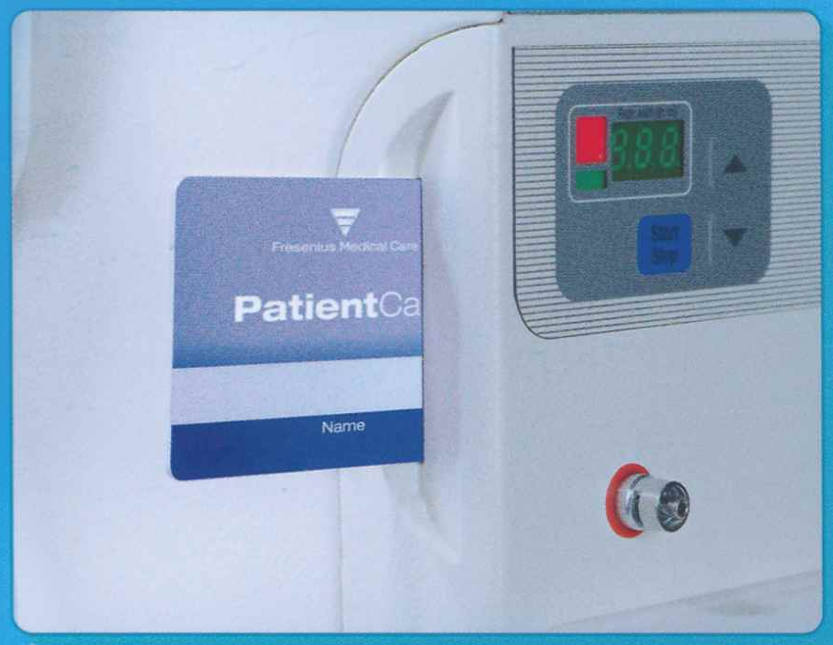

The integrated Patient Card provides easily accessible, automated data management.

• Helps avoid uncertainties in patient data collection.
• Allows rapid retrieval of recent treatment prescriptions.
• Ensures patient safety due to reduced input errors.

The patient card facilitates long-term patient surveillance and can be used in conjunction with the Therapy Data Management System (TDMS).

SAFETY, CONVENIENCE AND RELIABILITY



DIASAFE Plus – Ensures Ultrapure Dialysate

• Quality and purity of dialysis fluid are critical to successful dialysis.
• HD patients are typically exposed to 12000-19000 litres of dialysate per year.
• Micro-contaminants such as endotoxin fragments can enter the blood compartment with undesirable consequences such as inflammation and other acute complications such as hypotension.
• Ultrafiltration of fresh dialysate by the DIASAFE Plus is performed immediately upstream of the dialyzer: this removes the risk of patient exposure to bacterial microcontaminants.
• Whether performing high-flux or low-flux dialysis, the risk of endotoxin transfer can be minimized by using the DIASAFE Plus.

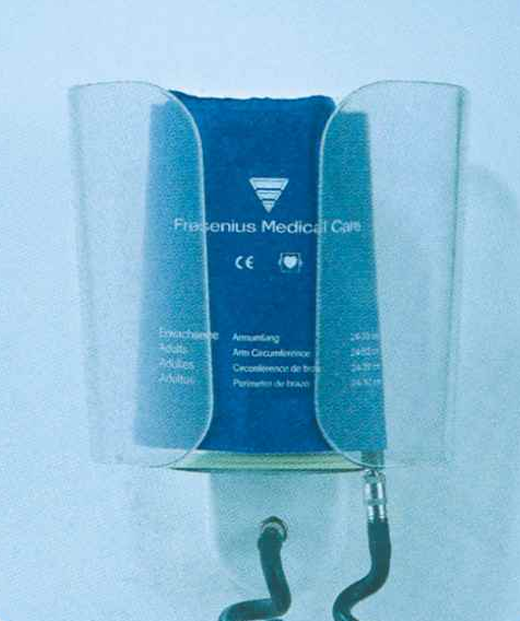

Blood Pressure Monitoring using the BPM (optional feature)

• Fully automated and non-invasive, operating on the principles of oscillometry.
• Programmable measurement interval of 5-15-30-60 minutes and quick measurement.
• Measurement of Systolic and Diastolic blood pressure, Mean Arterial Pressure (MAP) and Pulse rate

Volumetrically controlled ultrafiltration and closed-system hydraulics

• Fresenius Medical Care innovation for precise control of fluid removal

UF and Sodium Profiling

• Six pre-programmed ultrafiltration profiles and balance-neutral sodium profiles may improve tolerance to fluid removal while minimizing intradialytic complicationsand preventing intradialytic sodium loading

TECHNICAL FEATURES



Category	Feature	Details
General Data	Model	Haemodialysis Machine 4008 S
General Data	Version	4008 S Version V10
General Data	Article Number	M204001
General Data	Dimensions	1370 × 480 × 480 mm (H × W × D)
General Data	Pedestal Depth	630 mm
General Data	Weight	Approx. 86 kg
Water Supply	Water Inlet Pressure	1.5 – 6.0 bar
Water Supply	Water Inlet Temperature	5°C – 30°C
Water Supply	Max. Drain Height	1 m
Concentrate Supply	Supply Pressure	1 m suction height
Electrical Data	Power Supply	230 V ±10%, 47–63 Hz
Electrical Data	Current Consumption	Max. 9 A
Electrical Data	Alternative Power Supply	110 V ±10%, 47–63 Hz
Electrical Data	Current Consumption	Max. 15 A
External Connections	Alarm In	Zero potential alarm inlet
External Connections	Alarm Out	Zero potential alarm outlet
Extracorporeal Circuit	Arterial Pressure Monitoring	-300 mmHg to +280 mmHg
Extracorporeal Circuit	Accuracy	±10 mmHg
Extracorporeal Circuit	Resolution	20 mmHg
Extracorporeal Circuit	Venous Pressure Monitoring	-60 mmHg to +520 mmHg
Extracorporeal Circuit	Accuracy	±10 mmHg
Extracorporeal Circuit	Resolution	20 mmHg
Extracorporeal Circuit	Transmembrane Pressure Monitoring	-60 mmHg to +520 mmHg
Extracorporeal Circuit	Resolution	20 mmHg
Arterial Blood Pump	Blood Flow Range	15 – 600 mL/min
Arterial Blood Pump	Bloodline System	8 mm
Arterial Blood Pump	Accuracy	±10%
Air Bubble Detector	Detection System	Ultrasound transmission
Air Bubble Detector	Additional Feature	Optical monitoring in venous clamp
Heparin Pump	Delivery Range	0 – 10 mL/h
Heparin Pump	Bolus Function	Max. 5 mL per bolus
Heparin Pump	Syringe Size	20 mL
Dialysis Fluid Circuit	Dialysis Fluid Flow Range	0 / 300 / 500 / 800 mL/min
Dialysis Fluid Temperature	Selectable Range	35°C – 39°C
Dialysis Fluid Conductivity	Range	12.8 – 15.7 mS/cm (25°C)
Dialysis Fluid Conductivity	Accuracy	±0.1 mS/cm
Acid Concentration Dialysis Fluid	Default Mixing Ratio	1 + 34
Acid Concentration Dialysis Fluid	Range	125 – 150 mmol/L
Bicarbonate Concentration Dialysis Fluid	Default Mixing Ratio	1 + 27.6
Bicarbonate Concentration Dialysis Fluid	Range	18 – 8 mmol/L bicarbonate
Bicarbonate Dry Concentrate	Compatible Product	bibag® 5008
Ultrafiltration	UF Rate	0 – 4.00 L/h
Ultrafiltration	Accuracy	±1%
Ultrafiltration	Additional Feature	Allowed dialyser UF factor unlimited
Ultrafiltration	Parameters Displayed	UF goal, UF time, UF rate, UF volume
Blood Leak Detector	Sensitivity	<0.5 mL blood/min (Hct = 25)
Blood Leak Detector	Max. Flow	800 mL/min
DISAFE® plus	Dialysis Fluid Filter System	Included
DISAFE® plus	Balancing Accuracy	±0.1% of dialysate flow
OCM®	Online Clearance Monitor	Included
OCM®	Clearance K Accuracy	±5%
Disinfection & Cleaning Programmes	Rinse Temperature/Flow	37°C / 600 mL/min
Disinfection & Cleaning Programmes	Hot Rinse (Recirculation)	84°C / 450 mL/min
Disinfection & Cleaning Programmes	Integrated Hot Rinse	84°C / 450 mL/min
Disinfection & Cleaning Programmes	Cleaning Sporotal®	37°C / 600 mL/min
Disinfection & Cleaning Programmes	Hot Disinfection Diasteril®	84°C / 450 mL/min
Disinfection & Cleaning Programmes	Disinfection Puristeril®	37°C / 600 mL/min
Technical Data – Options	Single-Needle	With 2 blood pumps, internal pressure/pressure control with variable stroke volume
Technical Data – Options	Article Number	M.404641
Blood Pressure Monitor (BPM)	Article Number	M.4049281
Blood Pressure Monitor (BPM)	Systole Range	30 – 280 mmHg
Blood Pressure Monitor (BPM)	Diastole Range	10 – 240 mmHg
Blood Pressure Monitor (BPM)	MAP Range	20 – 255 mmHg
Blood Pressure Monitor (BPM)	Accuracy	1 mmHg
Central Delivery System	Article Number	M417651
Central Delivery System	Supply Pressure	0 – 100 mbar
Central Delivery System	Suction Height	1 m with Central Delivery System
Central Delivery System	Supply Rate	0 – 500 mbar
Network	Connectivity	RJ45/Ethernet for Therapy Data Management System/Finesse®
